Oil Flooded Air Compressors Oil-flooded Screw Air Compressor LH Series

Index

Outline
Specifications
Features

The LH Series represents premium line of middle to large oil-flooded screw compressors, offering the highest level of efficiency in the range. Engineered with advanced design and cutting-edge technologies, the LH Series delivers superior energy savings, outstanding durability, and exceptional reliability.

Specifications

Capacity Control	Fixed Speed / Variable Speed
Cooling Method	Air Cooled / Water Cooled
Output	22 - 250 kW
Discharge Pressure	0.75 - 1.3 MPa
Discharge Capacity	3.3 - 53.0 m3/min

Features

Air End

Advanced Air End technology with the latest engineering design.

Large rotor, low speed design, low noise, high reliabilty and durability.
Proven reliable bearing design to extend bearing life ( up to 100,000 hours) and reduce on maintenance cost.

Motor

TEFC enclosed high-efficiency motor, energy efficiency center certified IE3 motor.

Heavy-duty designed low-speed motors, which have longer bearing lifetime than high-speed motors.
Optional with IE4/IE5 motor.

Multiple Control Methods

Spiral Valve

The market-proven technology of spiral to control air capacity.

VSD Control

The most optimized VSD control system. It can adjust the speed of the air end by a wide range of regulation (the air volume adjustment range is up to 75%) to meet the changes in your air consumption.

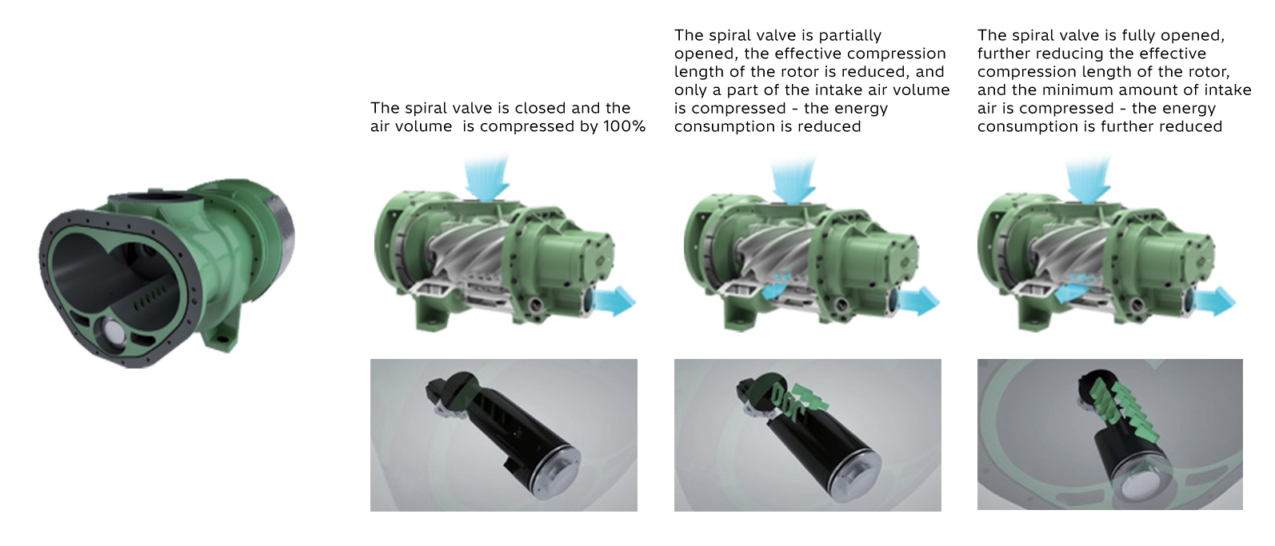

Sprial Valve Technology (Optional)

Compressor with spiral valve feature a variable displacement Air End. Compression volume is varied to suit air demand by progressively opening or closing internal bypass ports on the Air End. And compression chamber closed bypass ports utilize the entire length of the rotor.

Capacity is matched to system demand - prevent the wastage of air.
Up to 55% turndown capability with spiral valve.
As compared to other compressors using suction throttling, or load/no load control, power saving up to 10% at part load conditions.
