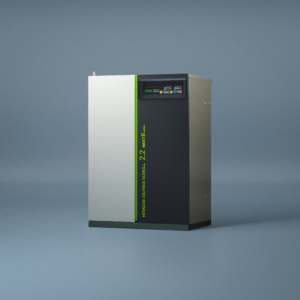

Oil Free Air Compressors Oil-free Scroll Air Compressor SRL Series

Index

Outline
Specifications
Features

Built on Hitachi's engineering expertise, the SRL Series features advanced scroll compressor technology to deliver oil-free compressed air with unmatched quietness.

Specifications

Capacity Control	Fixed Speed
Cooling Method	Air Cooled
Output	1.5 - 33 kW
Discharge Pressure	0.8 - 1.0 MPa
Discharge Capacity	0.16 - 3.78 m3/min

Features

Fixed Speed Type

Simple interface
Low noise & low vibration
Automated motor stop

Hitachi Innovation of Scroll Air-End Technology

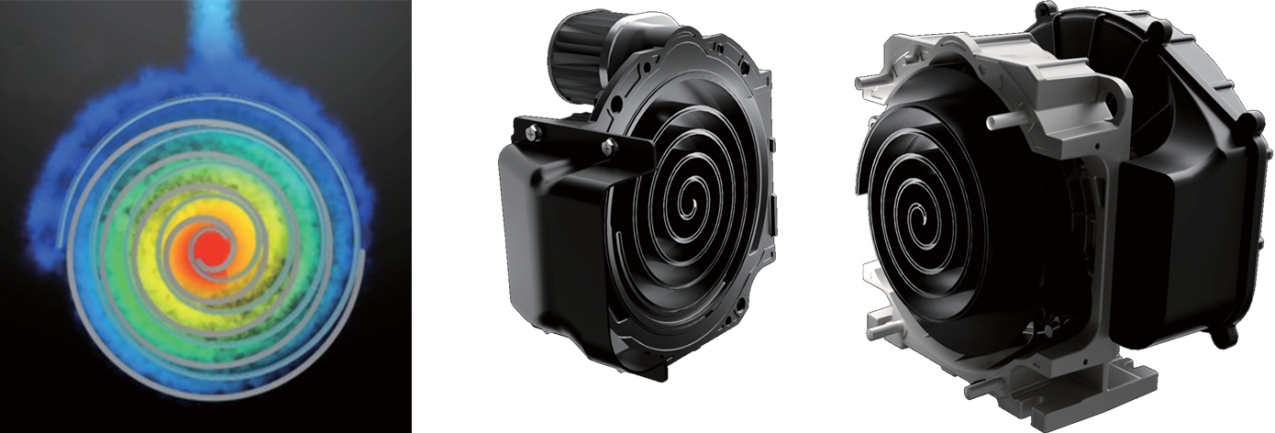

How Scroll Works

Scroll compression consists of two spiral-shaped components: a fixed scroll and an eccentrically rotating scroll. These two scrolls rotate while maintaining a gap roughly the width of a human hair. This mechanism draws in air from the outside, directs it toward the center, and gradually compresses it. This creates an extremely smooth and continuous compression process, resulting in minimal vibration and noise while achieving high efficiency.

Patented Technology

Wrap Coating: Improves compression efficiency by applying a special self-lubricating coating to the spiral sides.
Neo Involute Wrap: Enhances durability in high-temperature environments by adding protrusions to the spiral sides.

Premium Air Quality

True Oil-Free Air at Class 0 Level

Test and analysis of condensation of oil in the discharge air of Hitachi Oil-free Scroll Compressor (SRL) are implemented by third party based on ISO8573-1 standard. By the test result, oil contained in the discharge air of Hitachi SRL is proved and certified as the highest level of quality air “Class 0”.
